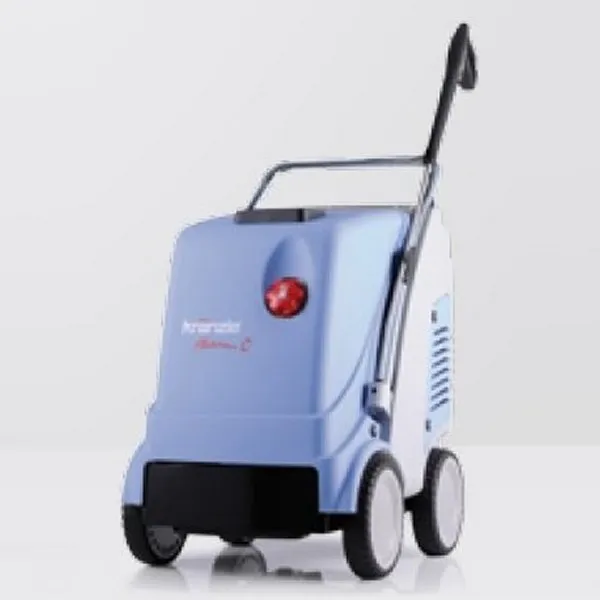

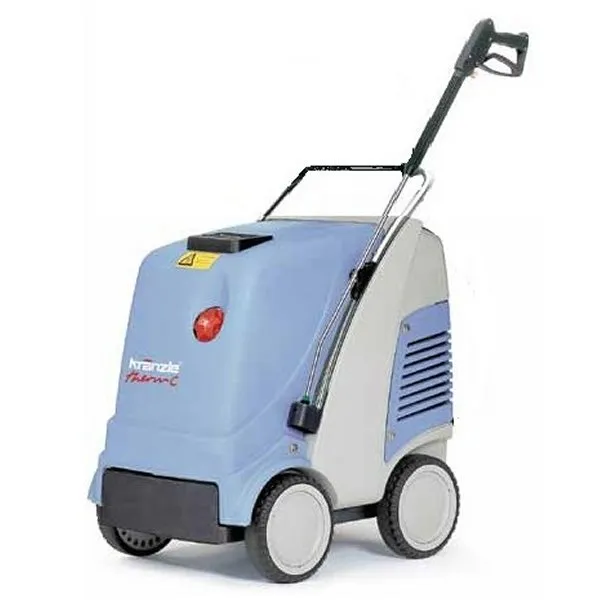

KRANZLE Therm C 15/150 Compact Pressure Washer order no. 41.440

The C 15/150 is an excellent compact design, and a powerful hot and cold pressure washer running on 3-Phase power supply 415 volt. Durable design for industrial and commercial use.

Intergrated trolley takes steps and rough ground in its stride with large wheels with wide solid rubber tyres

7.5m power lead with cable reel

Storage for trigger gun with safety catch and lances

Shock absorbing buffers, front and rear

Technical Data:

Operating pressure bar (MPa): 30-150 (3-15)

Max admissible overpressure bar (MPa): 170 (17)

Water output l/min (l/h): 15 (900)

Inlet water temperature max °C: 60

Hot water output temp °C: 12-80

Steam level max °C: 150

Nozzle size: 055

Heating oil consumption max heating output kg/h (l/h): 6.0 (7.1)

Heating oil consumption 45°, kg/h (l/h): 4.3 (5.1)

Heating output Kw: 65

Fuel tank capacity monitoring: 25

Motor speed (rpm): 1400

Connected load V / A / Hz: 400 / 8.7 / 50

Power intake (kW): 4.8

Power output (kW): 4.0

Weight (kg): 179

Dimensions (L x W x H) in mm: 790 x 590 x 980

Features & Equipment:

Total-Stop system with delayed motor cut-out

Additional electrical over-current protection

Water flowing monitoring

Pre-aeration of combustion chamber

Visual flame monitoring

Safety thermostat triggers at emission temperatures above 230 °C

4-way safety system with overload protection

High fuel cut off for burner

High pressure detergent

10m Twin steel braided hose

One piece M2000 trigger gun with safety catch, stainless steel lance and flat jet nozzle

Parking brake

Water inlet-filter

Alternative part numbers :- 41440, 41440.0, 41.440.0
